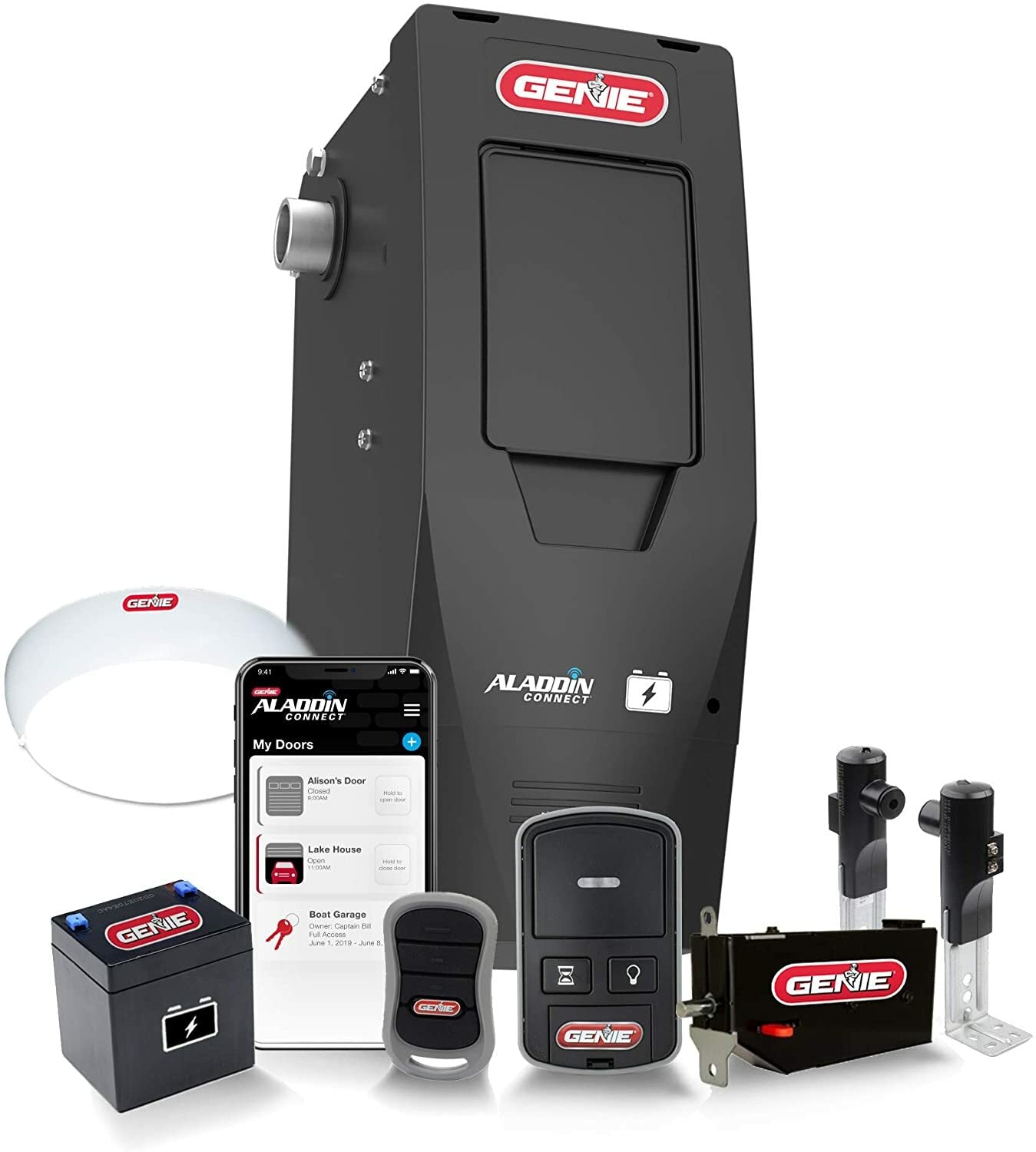

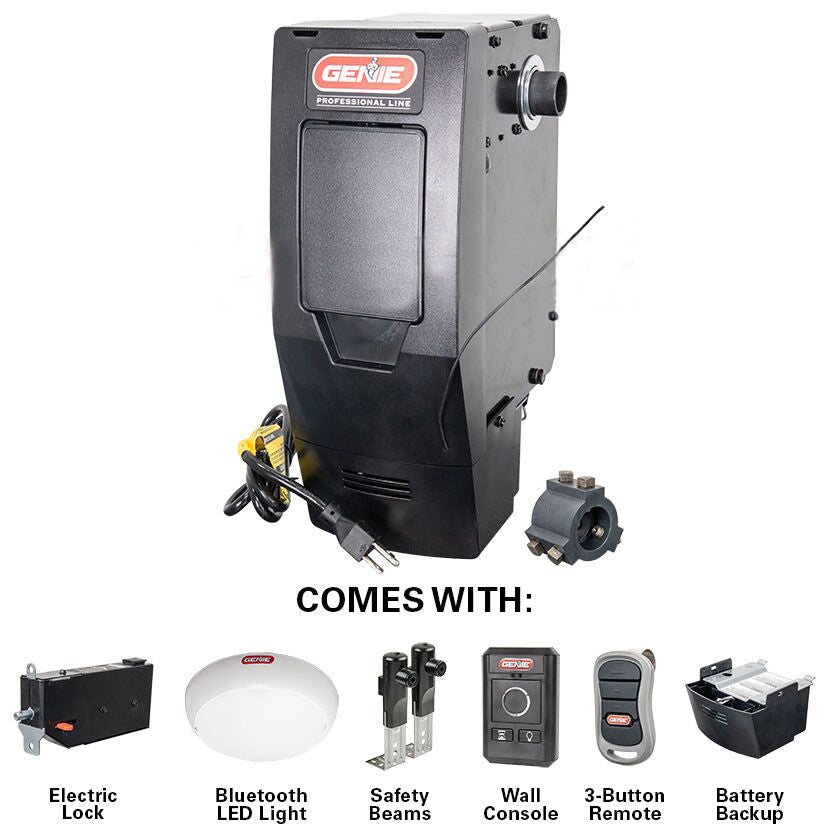

Genie 6170H-B DC Wall Mount Pro Series Opener

POWER & CONTROL

DC Motor Smart Technology – The DC motor provides quiet operation as well as
Soft Start and Stop control. This means the door begins and ends its travel smoothly,
not abruptly, which lessens noise as well as wear and tear on the garage door.

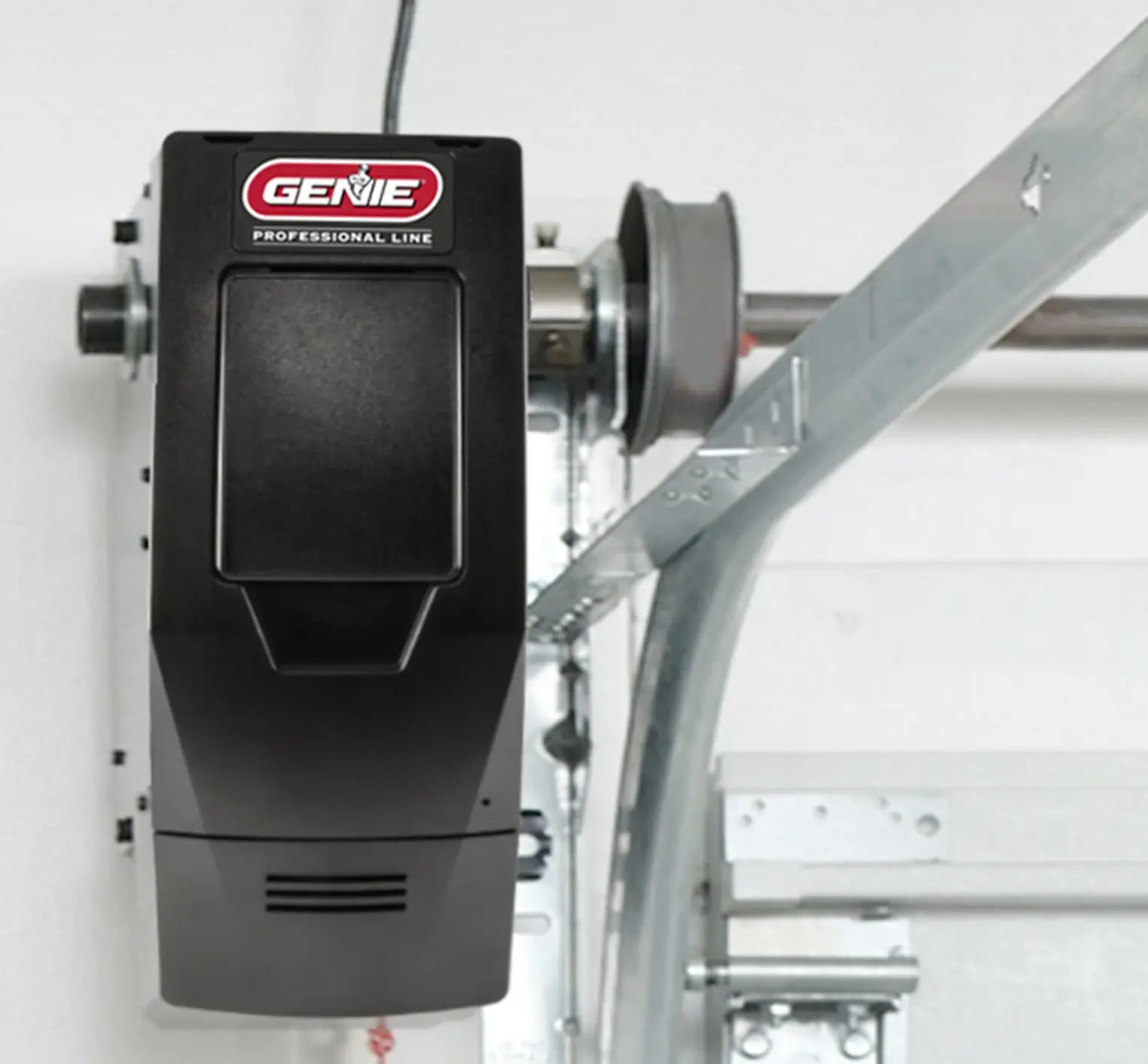

Wall Mount Design – Eliminates the traditional rail and power-head design by
attaching directly to the garage door’s spring tube. This allows for a cleaner garage
ceiling, and frees up space for additional storage and headroom. Beneficial for
installing in garages with beam obstructions. Powerful yet compact size allows for
more placement options, especially in tight spaces next to the garage door.
Speed – Opening speed of 7.5 inches/second* gets you on your way faster.

SAFETY

Safe-T-Beam® Non-Contact Reversing System – Puts an invisible beam
across the door opening. The door stops and reverses to open position if anything
passes through the beam.
Genie Exclusive Safe-T-Pulse™ System – Patent-pending system that
provides internal tension monitoring of door cables with an electronic pulse during
initial door travel. If it detects slack or unspooled cables, the system will stop
unsafe operation. Internal slack cable detection cannot be bypassed or improperly
aligned like external slack cable detection methods.

SECURITY

Intellicode® Access Security System – Genie’s superior encryption
technology prevents piracy of the radio signal that operates your door by
always selecting a new code from billions of combinations each time the opener
is operated.

CONVENIENCE

Auto Seek Dual Frequency – The internal system automatically uses either
the 315 or 390 MHz frequency produced by the remote control or keypad to help
ensure the opener responds regardless of potential nearby frequency interference,
such as military base equipment.
Pre-Programmed Remote (Qty 1) – Ready to use out-of-the-box with simple steps
to change the programming if so desired.
HomeLink® & Car2U® Compatible – Works with current and ALL
previous versions of HomeLink® or Car2U®. No additional external repeater kit or
compatibility bridge needed.
Wireless Wall Console – An attractive wall console that’s completely
wireless for flexible placement in the garage. Features an optional pulsing
back-light as well as delay button that gives ample time (up to 30 seconds)
to exit the garage before the door begins moving. The work light button
can turn just the opener’s light on at any time. Compatible with most Genie
Intellicode® openers made since 2013.
LED Light Fixture – Light fixture provides bright glowing light
plus flexibility to place fixture wherever desired in the garage.
Battery Backup (Model 6170H-B) – No more unexpectedly
getting locked outside the garage when the power goes out!
